DLE200 CC Gasoline Engine Paramotor Standard Muffler Version Premium Long Service Life High Power Low Vibration

Material : PVC

Place of Origin : China, GuangdongChina

private mold : Yes

Spark plug : DLE-8A

Brand Name : DLE

Driving mode : Belt

Bore : 55mm

compatible brand : DJI

Compression ratio : 10:1

ropeller : 1220mm

Price : $1,759 / box

MOQ : 1 box

Displacement : 200CC

Contact Now

Product Features
Compression ratio	10:1
brand name	DLE
ropeller	1220mm
Spark plug	DLE-8A
Driving mode	Belt
place of origin	Guangdong,China
Displacement	200CC
Bore	55mm

Features

Engine parameters
Horizontally opposed double cylinder water cooling
Displacement: 128cm3
Cylinder bore x Stroke: 47mm x 35mm
Power: 12HP / 8300 rpm
Idle speed: 3500-6000 rpm
Engine weighs 6.2kg
Cooling system: 2kg (including 800ml coolant)
Generator parameters
Three phase permanent magnet generator
voltage: ac50v, rectifier is dc50v
Frequency: non fixed frequency type, changing with engine speed, frequency following changes
power: 7.4kw
Starting mode: external handheld starter, power 1000W, user needs to install 3s12v lithium battery capacity 3300MA-4200MA.
Ignition mode: 12vcdi DC ignition, power 4W
Circulating water pump: DC12V, power 15W
Throttle controller: DC12V, power 1W
Spark plug model: CMR 6m, please use M14 special sleeve tool to remove and tighten the spark plug The torque is 7-8n / m. please insert the high-pressure cap with force. The spark plug can't be seen when it is installed in place When using the high pressure cap, please gently pry the stainless steel Shell flanging with a slotted screwdriver
Fuel: ordinary vehicle gasoline is mixed with special lubricating oil for 2-stroke engine. The mixing ratio is 30:1 (30 l gasoline to 1 l lubricating oil). Please do not change the above ratio by yourself. Recommended lubricant brands: Total 2T, motor 710, torco gp-7, mercury TCw. It is forbidden to mix different brands of lubricants.
Engine operating temperature - 20 °C /50 °C
Waterproof grade: IP43

Product Description

DLE200 CC Gasoline Engine Paramotor Standard Muffler Version Premium Long Service Life High Power Low Vibration

Specification

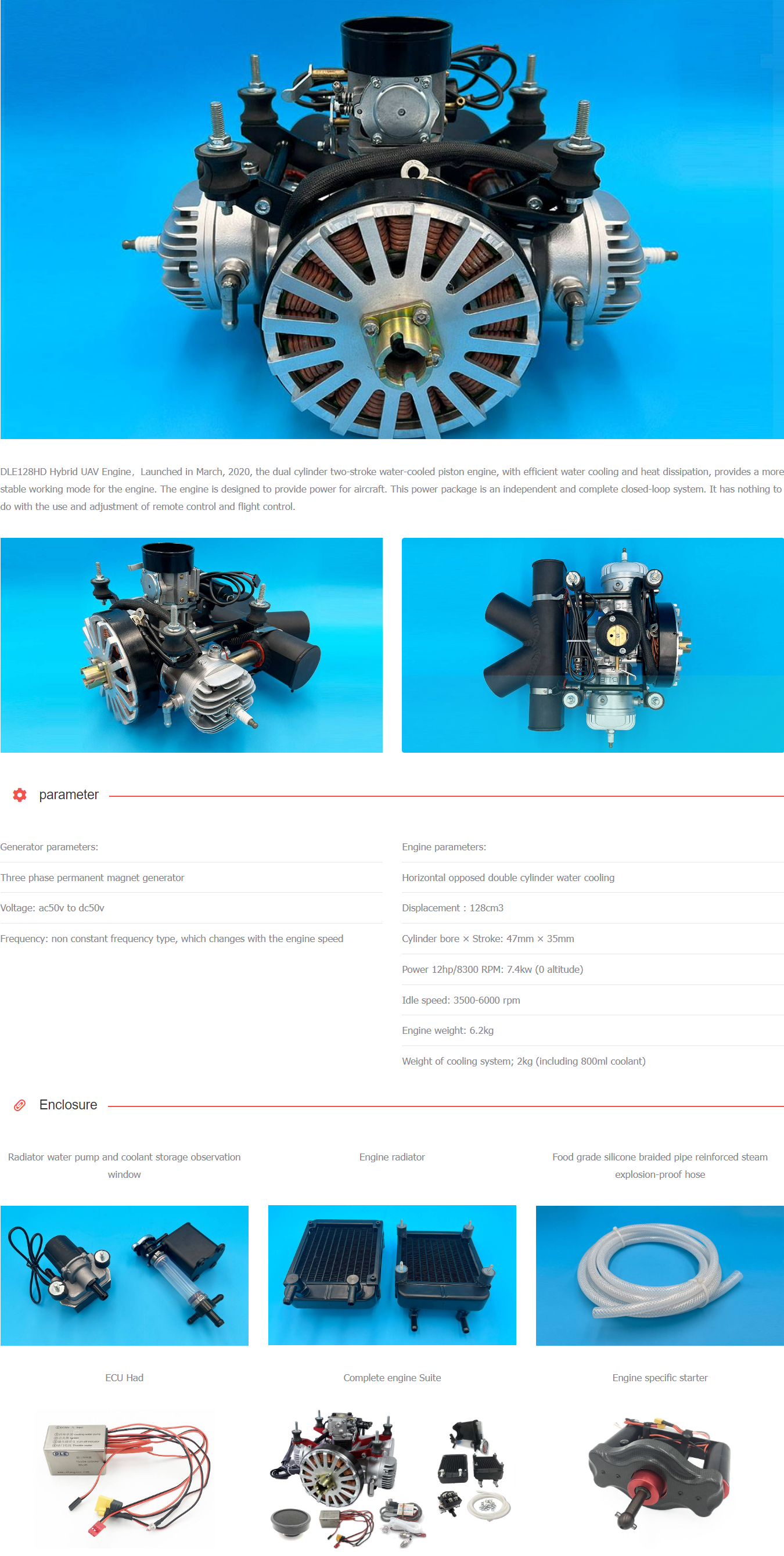

DLE128HD Drone Engine 7.4kw Water-Cooled Hybrid Electricity Generator Gasoline Engine Electric Kit

DLE200 CC Gasoline Engine Paramotor Standard Muffler Version Premium Long Service Life High Power Low Vibration Images
